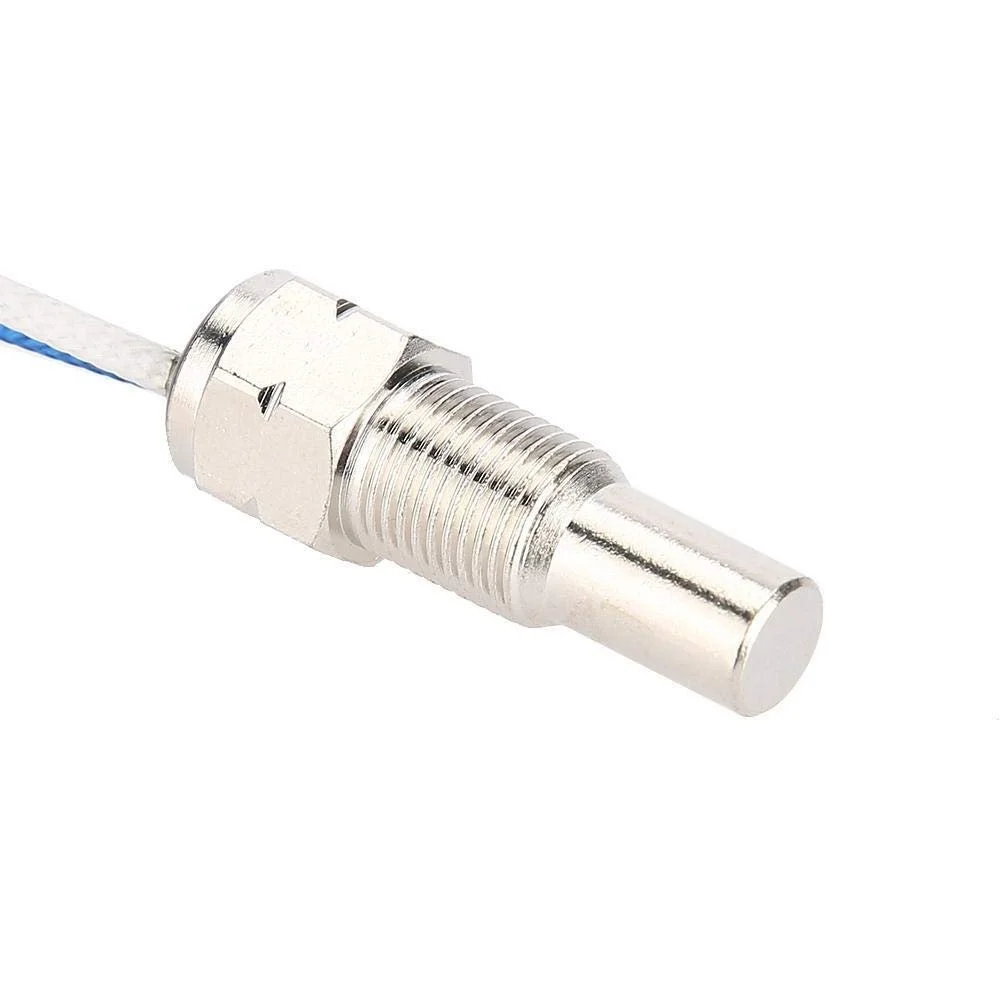

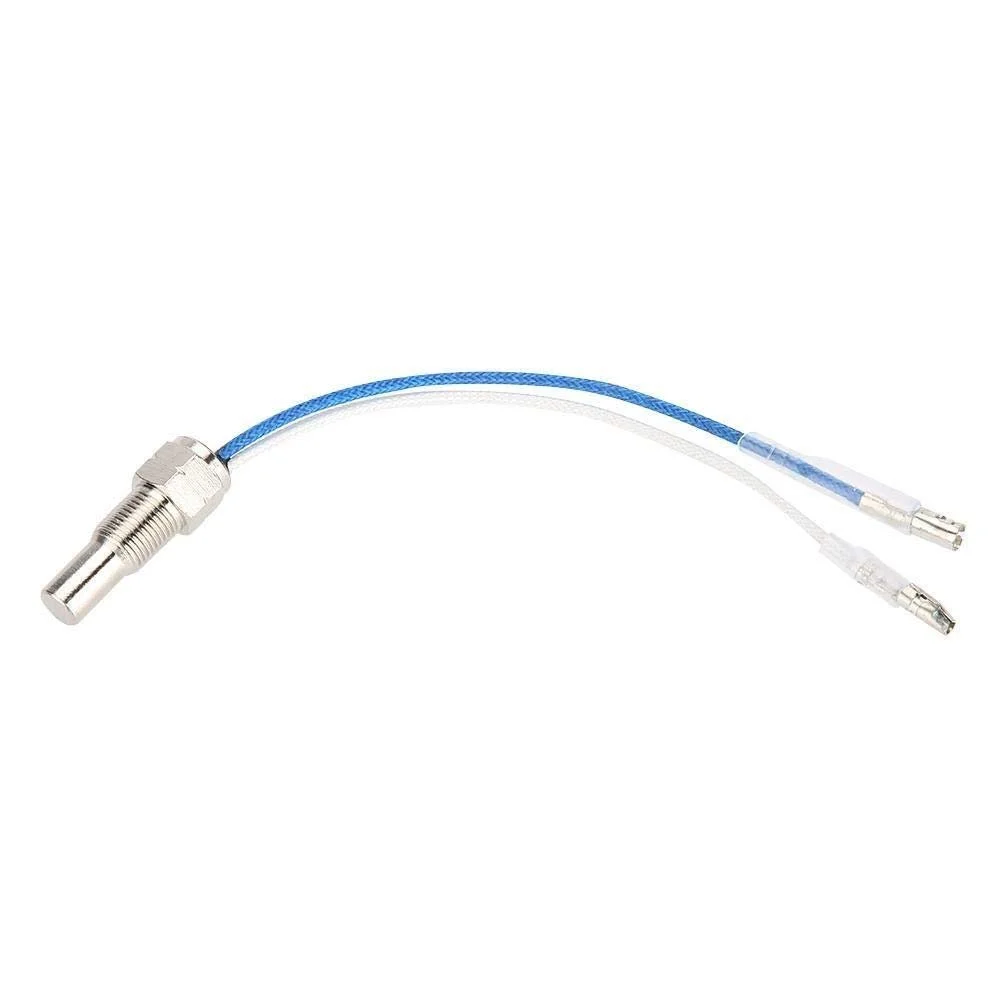

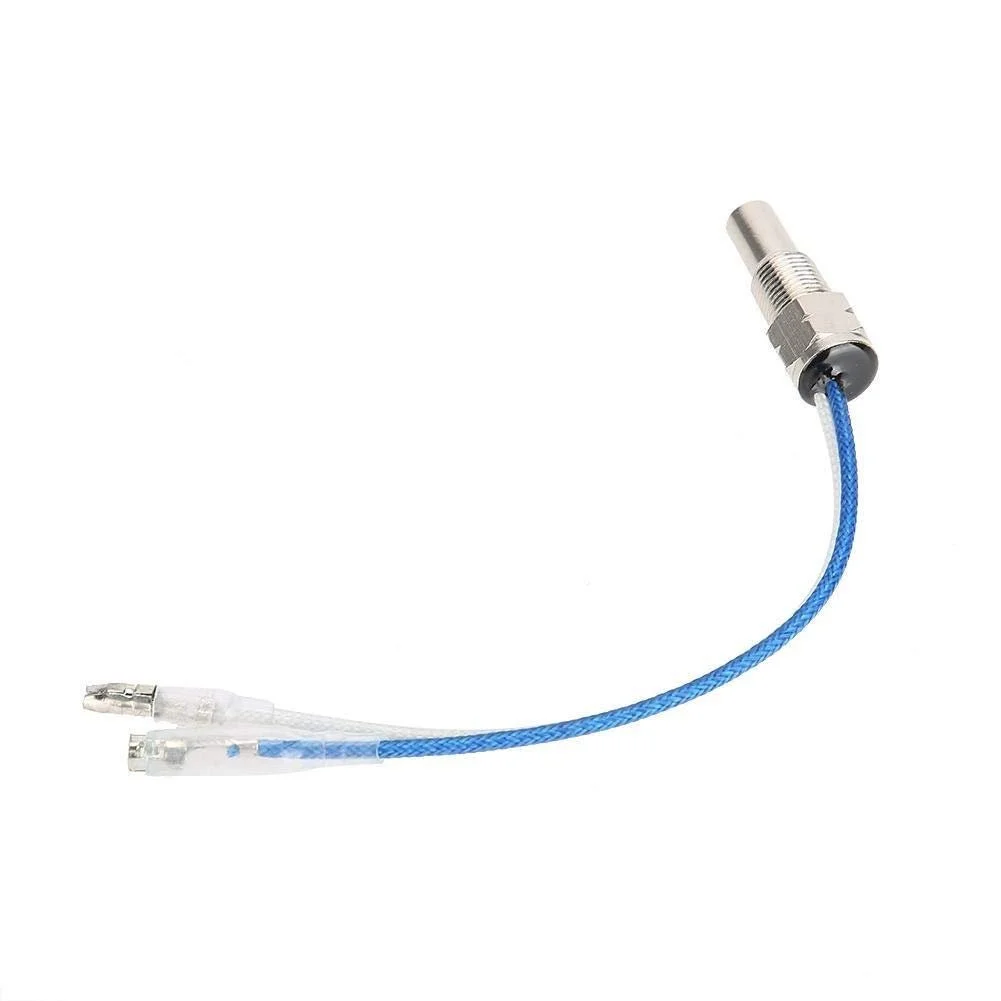

Expand your telemetry capabilities with this high-precision temperature sensor, the ideal aftermarket add-on for our 52mm Digital Display. Designed specifically to monitor critical oil or coolant temperatures, it delivers rapid, real-time data directly to your gauge. Built with a standard 1/8" NPT thread, this sensor easily integrates into aftermarket sandwich plates or fluid adapters, providing reliable performance and peace of mind during demanding track sessions or drift runs.
Connection Thread: 1/8" NPT (Industry standard for aftermarket sandwich plates and coolant adapters)
Wiring: Heavy-duty braided wire jacket for extended lifespan, added heat protection, and durability in cramped engine bays
Build Quality: Premium material construction engineered for high accuracy and resistance to motorsport vibrations
Measuring Range: 0 °C to +150 °C
Media Compatibility: Suitable for engine oil, transmission fluid, and coolant/water
System Integration: Seamlessly connects to any of the 8 configurable analog inputs on the 52mm display
Installation: Perfect for adding auxiliary temperature monitoring to dedicated track cars without tapping into the factory wiring harness.
Configuration: Easily map the sensor's readings to your digital display using standard resistance calibration curves of VDO.
Sealing: We recommend applying a small amount of liquid thread sealant or PTFE tape to the 1/8" NPT threads prior to installation to ensure a leak-free fit.
